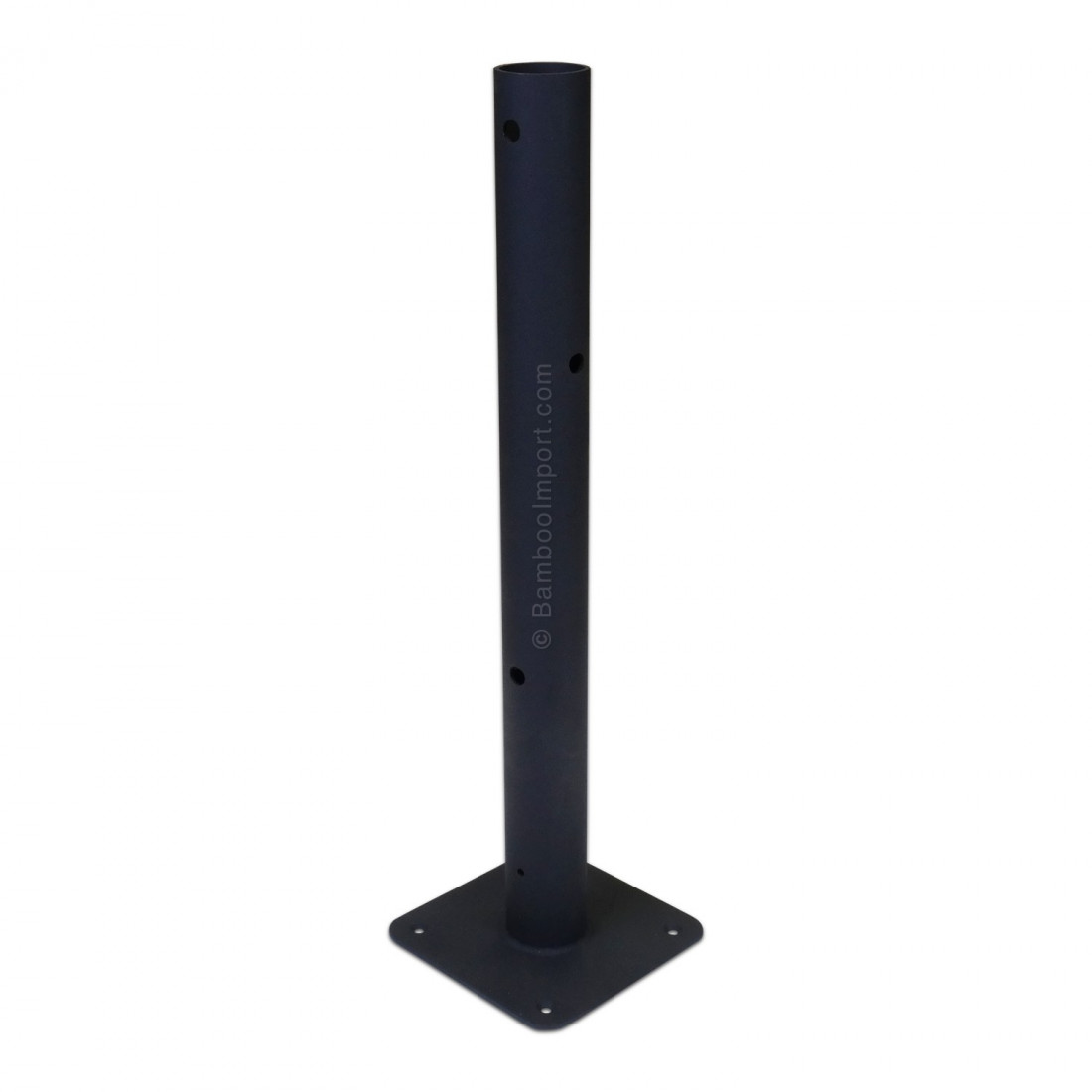

Bamboo Pole Holder Base Plate, 40 mm

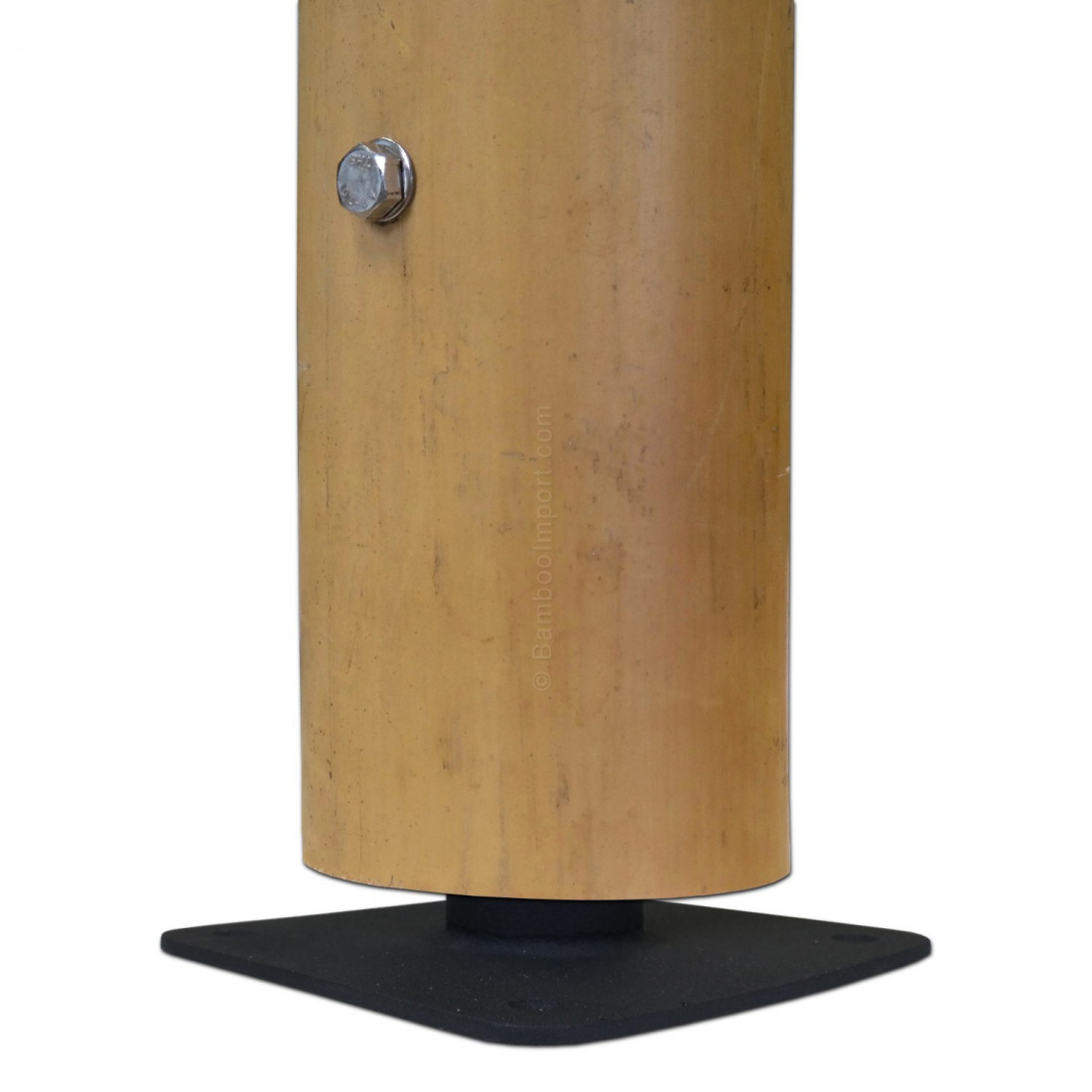

The 40 mm diameter bamboo pole holders are made of black powder-coated steel and provide excellent protection against rot or decay of the bamboo when it is in direct contact with the ground. It is therefore recommended to keep a gap of at least 2 cm between the post holder plate and the bamboo pole.

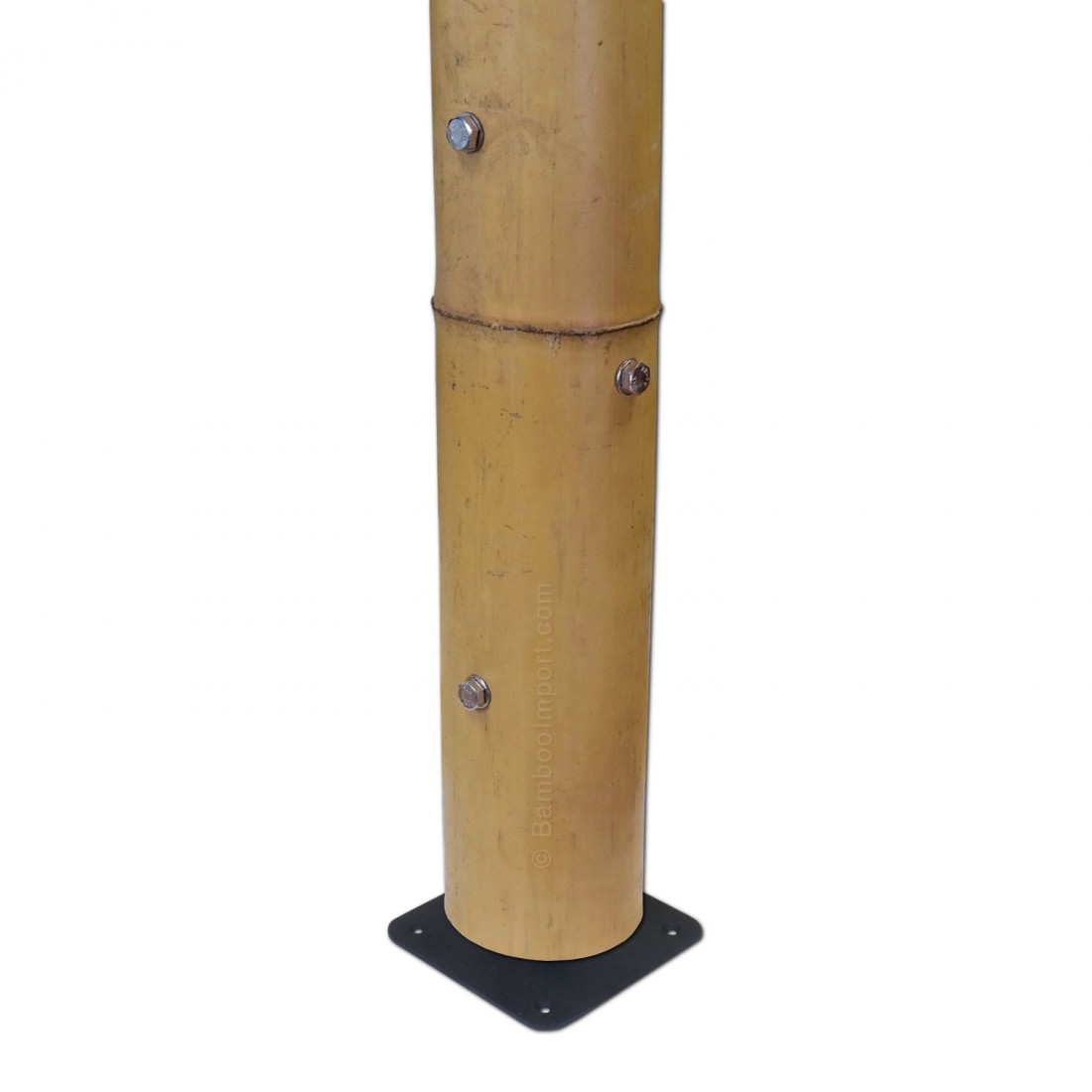

To install the post holder correctly, we recommend marking the position of the holes on the bamboo pole. Drill 8 mm holes in the bamboo pole so that they align with the small holes in the steel pole holder. Place the bamboo pole onto the pole holder and secure it with M8 bolts.

Required per pole holder:

• 3 x M8 bolt
• 3 x M8 nut
• 6 x M8 washer
